Overview
|
- EDATEC's Power Supply support Raspberry Pi Compute Module IO Board and all of EDATEC’s 12V input computers.
- ED-PSU1202 is a single-phase 24 watts, 12V 2A output power supply, which is designed by Kuantech Cooperate and marketed by EDATEC.

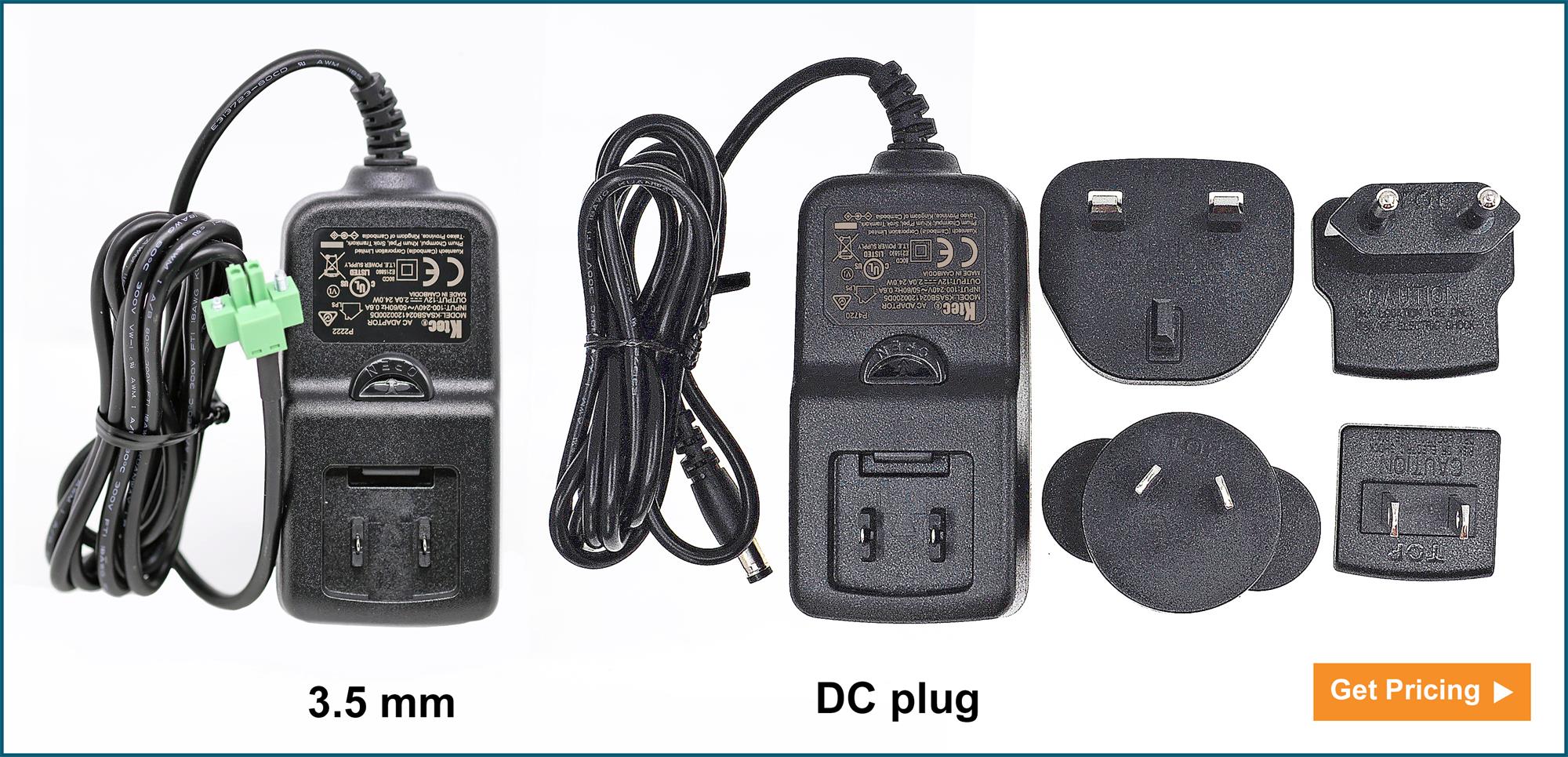

- ED-PSU1202 offers 4 versions: UK, Europe, Australia & USA by a main body and 4 changeable Australia & USA by a main body and 4 changeable plugs.
|
Document Download
Parameters
|
- Rated input voltage: 100-240Vac - Operating range: 90-264Vac - Rated input frequency: 50/60Hz +/- 3Hz - Rated input current: 0.6A max. - Maximum input power: 29.1W - Input current (no-loading): ≤25mA - Power consumption (no-loading): 0.075W MAX - DC output voltage: + 12.0V - Minimum load current: 0.0A - Rating load current: 2A - Rating output power: 24.0W - Line regulation: ±5% - Ripple and noise: 150 mVp-p - Switching efficiency: 86.8% minimum output current from 100%, 75%, 50%, 25%, 76.8% minimum 10% load - Protection：Over-voltage, Short-circuit, Over current - Reliability level: 50K hours MTBF @ 25° C (rated input voltage, and using the BELLCORE SR-332 method).DC output voltage must be Safe Extra Low Voltage (SELV) & Limited Power as defined by IEC60950-1 - Warranty life: All E-Capacitor life must meet 5 years at 25℃ ambient.( 115V/60Hz and 230V/50Hz) - The operating temperature: 0~40°C. - Output connector: 5.5mm/2.5mm DC plug |
Regulatory Standard
Order Information
FAQ
|
1. How can I know whether 12V/2A power supply is enough for my system? 12V/2A power supply outputs total 24W power. You may convert 12V to 5V/3.3V in your system, you have to consider the power efficiency of DCDC converter, and the peak power of your system, leave at least 20% room based on the peak power. Normally 12V/2A power supply is enough for most of EDATEC ‘s computers if no high power motor & magnetic switch are used in the system. |
|
2.Why the logo of the package is EDATEC but the logo of the power supply is KTEC? What is the relationship between two companies? 12V/2A power supply was designed by Kuantech Cooperate(KTEC), EDATEC sourced this product and supply to the global customers, Kuantech doesn’t offer the individual package for each unit, EDATEC designed a package box to protect the power supply. We will take the ownership of the technical support and after sale services. |
